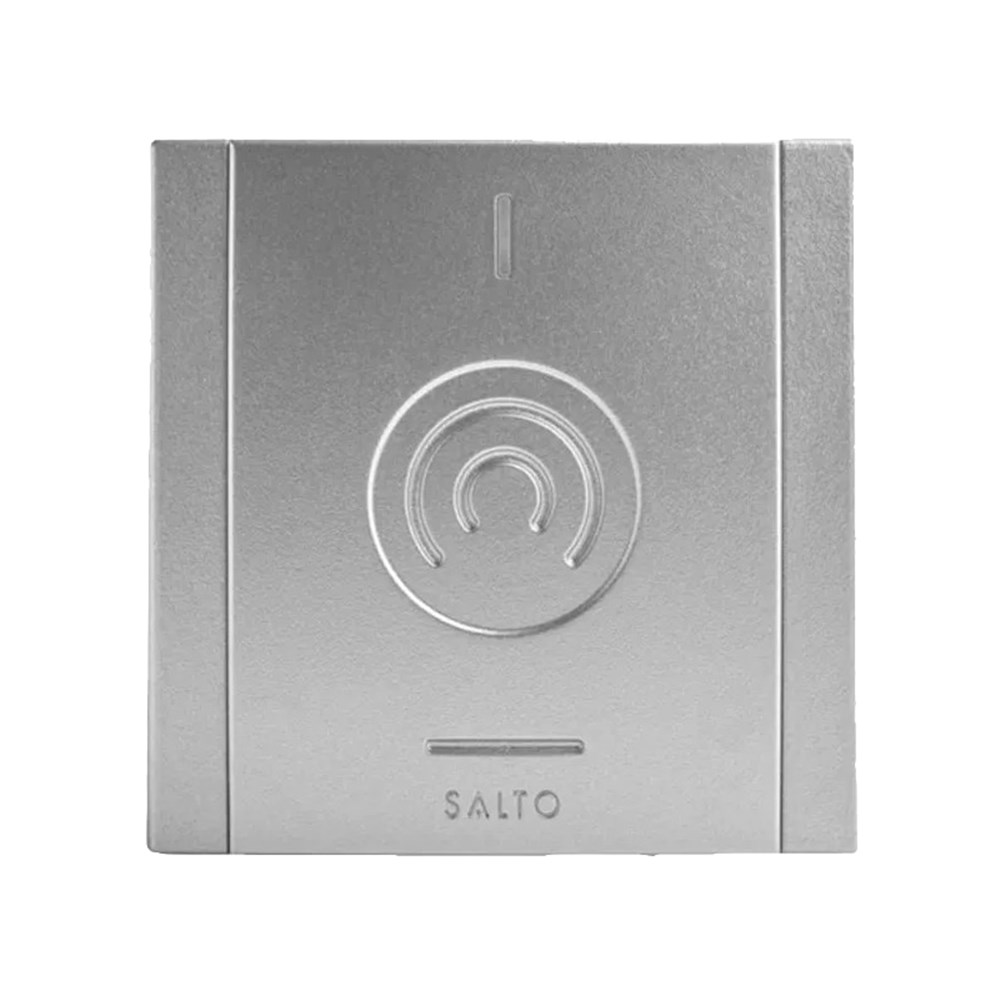

The SALTO Modular XS EU Wall Reader is designed to extend SALTO access control capabilities, delivering a reliable and flexible solution for a wide range of applications.
Combined with a SALTO controller, it enables seamless integration with SALTO smart access platforms, providing a complete and scalable security solution for both indoor and outdoor environments.
Compatible with the CU42xx range only and will not work with the CU5000 range.
- Modern square design with green, red and blue LED optical signalling.
- Green and red LEDs indicate access authorisation status.
- Blue LED indicates user key update in progress via SALTO Virtual Network technology.
- Fully integrated with SALTO platforms.
- Virtual network capable through SALTO SVN data on card technology.
- Acoustic and optical signalling for clear user feedback.
- Suitable for flush or surface mounting depending on base.
- Concealed fixing screws for improved security and clean aesthetics.
- Weather resistant enclosure designed for demanding environments.
Technical Characteristics:
- To be used in combination with CU4200 series controllers.
- Designed to work with an online SVN access control platform or as a standalone system.
- Maximum distance between the door controller and wall reader up to 400 m using twisted pair cable.
- Includes tamper monitoring to detect unauthorised opening.
- Reading distance from 35 to 50 mm depending on RFID technology.
Opening Modes:
- Opening via key card, key fob, wristband or mobile credentials.
Platforms:
- SALTO Space
- SVN Data on card
- SALTO KS
